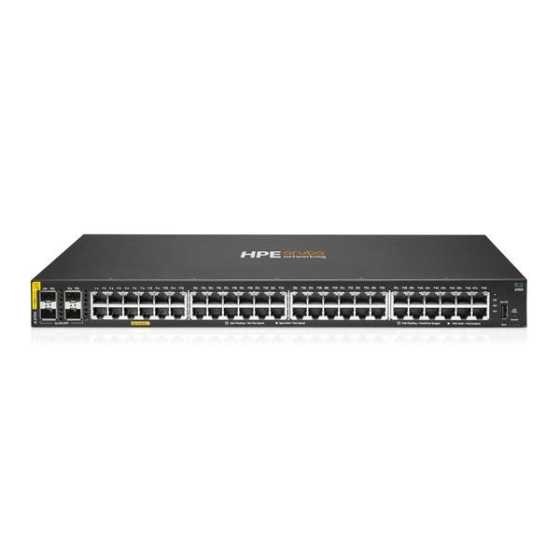

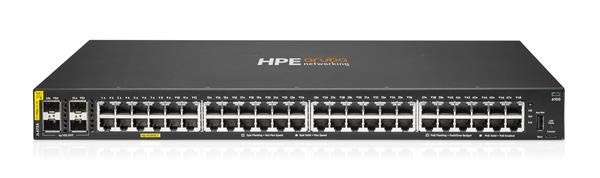

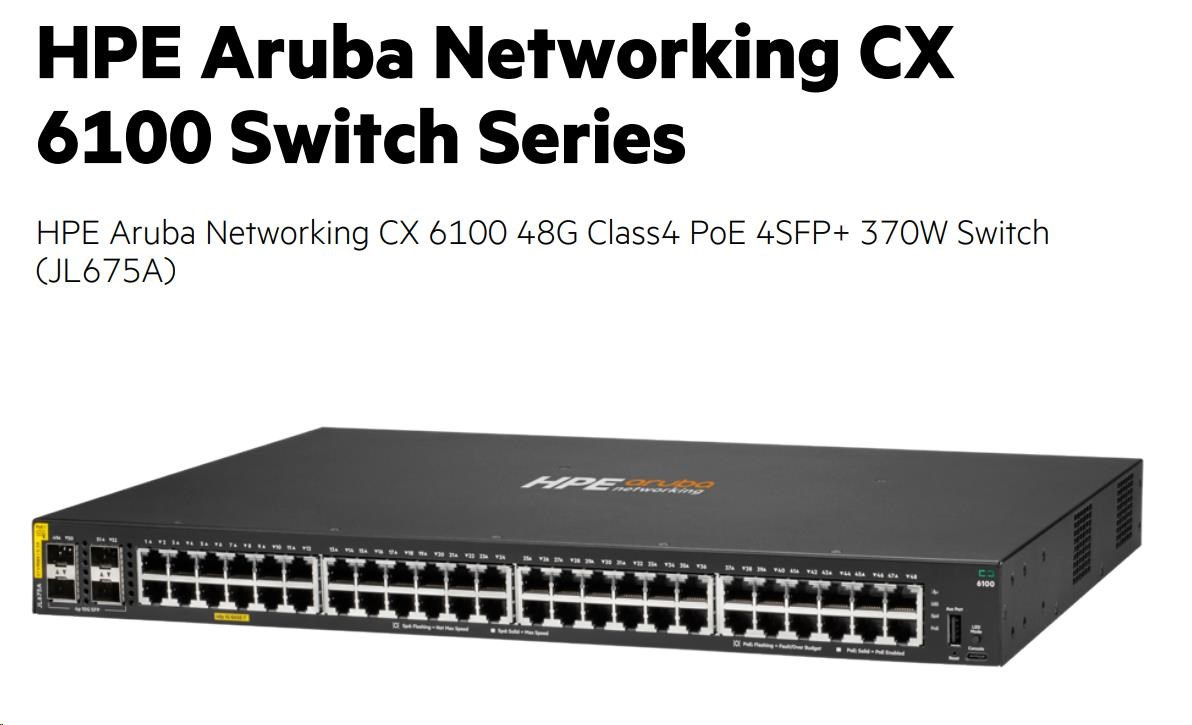

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch RENEW JL675A

Name: HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch RENEW JL675A
Brand: Hewlett Packard Enterprise
SKU: 726166
Price: 2183 EUR
Availability: PreOrder

Kód: 726166

Ihned k odeslání

Termín a spôsob doručenia

Hewlett Packard Enterprise

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps, 10 Gigabit optika, Gigabit ethernet + 10 Gigabit optika, Gigabit optika; Maximálny počet portov:52; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch.prečítajte si viac

Obľúbený

Porovnať

Vyberte si zvýhodnené balenie

Množstevné zľavy

Váš dotaz

Sledovat

Parametre

Výrobca:

Hewlett Packard Enterprise

Kód:

726166

EAN:

726166

Záruka:

24 Doživotní

Stav:

Maximální počet portů:

Provedení:

Rack mounted 19"

Technologie:

Gigabit ethernet + 10 Gigabit optika, 10 Gigabit optika, Gigabit Ethernet 1000Mbps, Gigabit optika

Management:

SNMP/RMON

Vlastnosti switche:

Funkce POE po portech

PoE budget (W):

370

Funkce:

L2, L2+, L3

Počet SFP portů:

Počet PoE Out portů:

Počet SFP+ portů:

Podporované standardy PoE:

802.3af, 802.3at

Počet portů LAN:

Ventilátor:

Ano

Přenosová rychlost LAN (Mb/s):

1000

Počet USB 2.0:

Popis HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch RENEW JL675A

Naposledy navštívené produkty

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch RENEW JL675A

5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960 (JL808A)

TP-Link CCTV switch TL-SL1311P (8x100Mb/s, 2xGbE, 1xSFP, 8xPoE+, 65W, fanless)

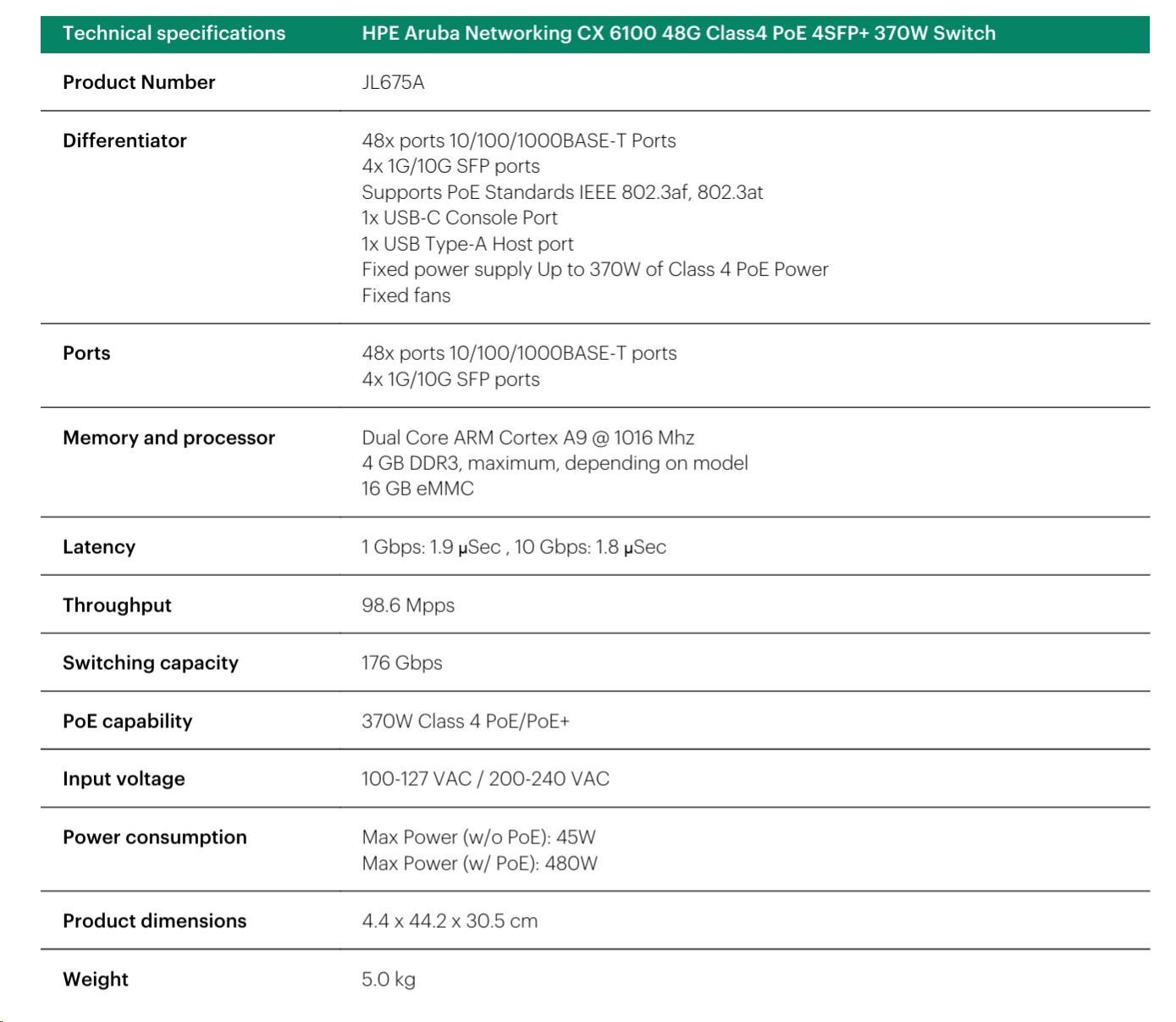

Feature	Details
Differentiator	48x 10/100/1000BASE-T ports, 4x 1G/10G SFP ports, Class 4 PoE, Fixed fans and power supply
PoE Standards	IEEE 802.3af, IEEE 802.3at
Console Port	1x USB-C
USB Host Port	1x USB Type-A
PoE Power Budget	Up to 370W Class 4 PoE/PoE+
Ports	48x 10/100/1000BASE-T, 4x 1G/10G SFP
Processor	Dual Core ARM Cortex A9 @ 1016 MHz
Memory	4 GB DDR3
Storage	16 GB eMMC
Latency	1 Gbps: 1.9 µs, 10 Gbps: 1.8 µs
Throughput	98.6 Mpps
Switching Capacity	176 Gbps
Input Voltage	100-127 VAC / 200-240 VAC
Power Consumption	Max 45W (w/o PoE), Max 480W (with PoE)
Dimensions (metric)	4.4 x 44.2 x 30.5 cm
Weight	5.0 kg

Specifications
	Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
Description	48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply (500W) Up to 370W of Class 4 PoE Power
Fans	Fixed fans
Physical characteristics
Dimensions	(H) 4.39 cm (W) 44.2 cm (D) 30.48 cm (1.73" x 17.4" x 12.0")
Configuration Weight	5.02 kg (11.07 lbs)
Additional Specifications
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity	176 Gbps
Model Throughput Capacity	98.6 Mpps
Average Latency (LIFO-64- bytes packets)	1 Gbps: 1.9 µSec , 10 Gbps: 1.8 µSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256

	Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A))
Environment
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity	15% to 95% at 104°F (40°C) non-condensing
Non-Operating	-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity	15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude	10000 feet (3 km) Max
Max Non-Operating Altitude	15000 feet (4.6 km) Max
Acoustic	Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB
Primary Airflow	Side-to-side
Electrical Characteristics
Frequency	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC
Current	4.9 A / 2.4 A
Power Consumption (230 VAC)	Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Safety
	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions
	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

	Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A))
Lasers
	EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic	CISPR 24 / CISPR 35
EN	EN 55024:2010 / EN 55035:2017
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
