Name: Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
Brand: Hewlett Packard Enterprise
SKU: 1881199
Price: 1439 EUR
Availability: OutOfStock

Tento e-shop slouží jako ukázka možností e-shopu BINARGON. Protože nejsme prodejci níže uvedeného sortimentu, nemůžeme si toto zboží objednat přímo u nás. Pokud by jste však chtěli některý ze zde uvedených produktů zakoupit, můžete se obrátit na některého z našich zákazníků. Seznam našich zákazníků najdete v našich referencích webů a e-shopů.

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB

Kód: 1881199

Prevedenie:Rack mounted 19"; Technológia:Fast Ethernet + Gigabit uplink, Gigabit Ethernet + 10 GbE porty; Maximálny počet portov:12; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch.prečítajte si viac

Vyberte si zvýhodnené balenie

Množstevné zľavy

Váš dotaz

Sledovat

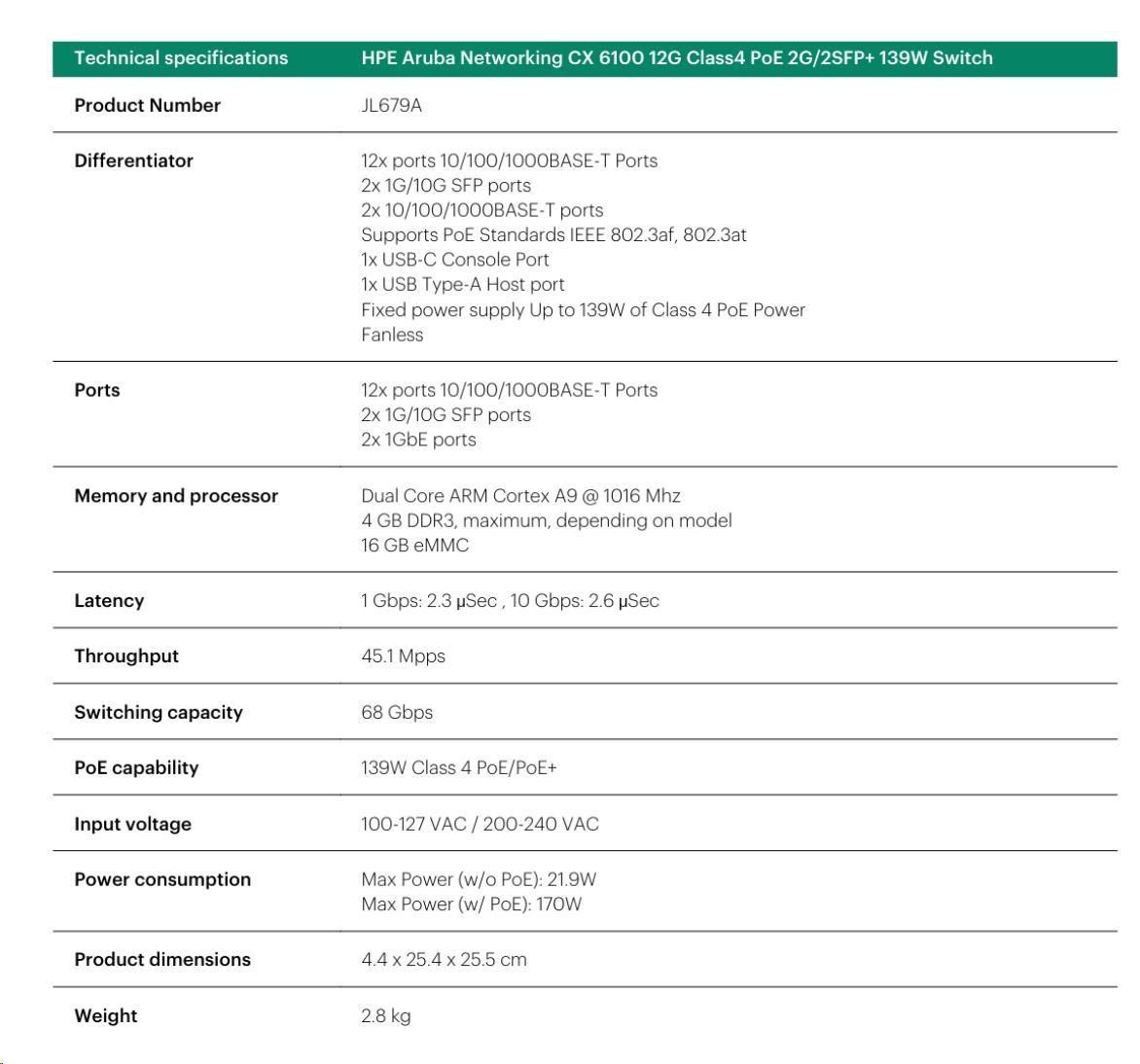

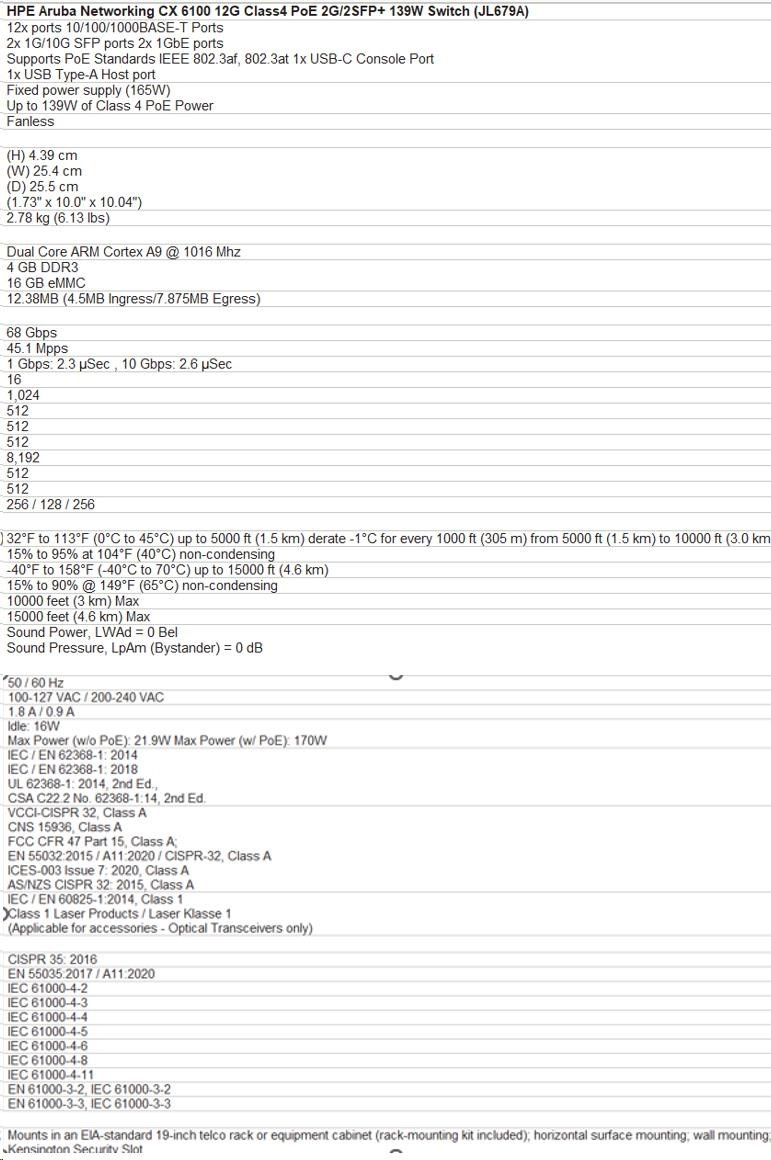

	Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Description	12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply (165W) Up to 139W of Class 4 PoE Power
Fans	Fanless
Physical characteristics
Dimensions	(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04")
Configuration Weight	2.78 kg (6.13 lbs)
Additional Specifications
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity	68 Gbps
Model Throughput Capacity	45.1 Mpps
Average Latency (LIFO-64-bytes packets)	1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256
Environment
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity	15% to 95% at 104°F (40°C) non-condensing
Non-Operating	-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity	15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude	10000 feet (3 km) Max
Max Non-Operating Altitude	15000 feet (4.6 km) Max
Acoustic	Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow	-

	Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Electrical Characteristics
Frequency	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC
Current	1.8 A / 0.9 A
Power Consumption (230 VAC)	Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Safety
	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014
Emissions
	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Lasers
	EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic	CISPR 24 / CISPR 35
EN	EN 55024:2010 / EN 55035:2017
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
