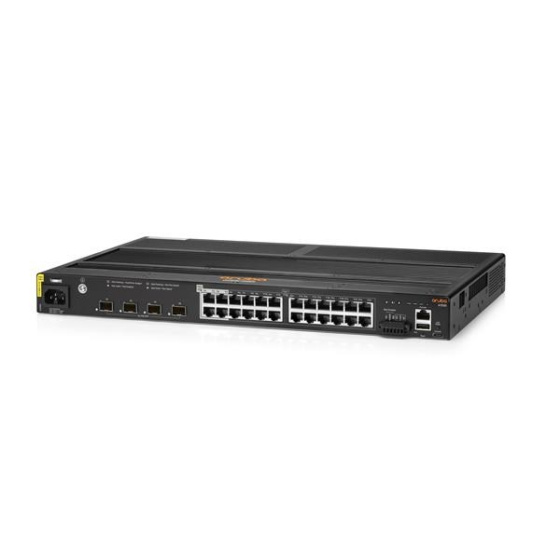

Name: Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch JL818AR RENEW
Brand: Hewlett Packard Enterprise
SKU: 713900
Price: 13573 EUR
Availability: OutOfStock

Tento e-shop slouží jako ukázka možností e-shopu BINARGON. Protože nejsme prodejci níže uvedeného sortimentu, nemůžeme si toto zboží objednat přímo u nás. Pokud by jste však chtěli některý ze zde uvedených produktů zakoupit, můžete se obrátit na některého z našich zákazníků. Seznam našich zákazníků najdete v našich referencích webů a e-shopů.

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch JL818AR RENEW

Kód: 713900

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:24; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch.prečítajte si viac

Vyberte si zvýhodnené balenie

Množstevné zľavy

Váš dotaz

Sledovat

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A)
Description	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
	4x 1/10G SFP ports
	Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
	1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket
Power Supplies	Fixed internal power supply (300W)
Power Supplies	240W of PoE Power (no de-rating)
Fans	Fanless
Physical Characteristics	Dimensions	(H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73" x 17.5" x 12.0"
Physical Characteristics	Weight	6.50 kg (14.33 lbs)
Mounting And Enclosure	Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately
Additional Specifications	CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
	Memory And Flash	4 GB DDR3 32 GB eMMC
	Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance	Model Switching Capacity	up to 128 Gbps
	Model Throughput Capacity	up to 95 Mpps
	Average Latency (LIFO-64-bytes packets)	1 Gbps: 1.585µSec , 10 Gbps: 1.243µSec
	Switched Virtual Interfaces (dual stack)	16
	IPv4 host table (ARP)	756
	IPv6 host table (ND)	576
	IPv4 unicast routes	576
	IPv6 unicast routes	576
	MAC Table Size	8192
	IGMP Groups	512
	MLD groups	512
	IPv4/IPv6/MAC ACL entries (ingress)	256 / 128 / 256
Environment	Operating temperature	-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
	Non-Operating Storage relative humidity	5% to 95%, non-condensing
	Max Operating Altitude	up to 4.2 km (13800 ft) Max
	Max non-operating Altitude	4.6 km (15000 ft) Max
Electrical Characteristics	Frequency	50Hz/60Hz
	AC voltage	100V-240V
	DC Input Voltage	N/A
	Current	max 3.9A/1.9A (240W PoE)
	Maximum heat dissipation BTU/hr	117 BTU/hr at 230V - Room temperature (25°C)
	Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC)	Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W *Heater will only turn on at extreme low temperature condition
Safety	Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014 North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14 Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1
EMC	Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 US: FCC CFR 47 Part 15: 2018 Class A Canada: ICES-003 Class A Japan: VCCI Class A Taiwan (BSMI) CNS 13438 Class A Korea KN 35:2015 Korea KN 32 Class A Aus/NZ AS/NZS CISPR 32 Class A Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A CISPR 32 Class A CISPR 24:2010
Lasers	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Industry Specific Compliance	Industrial	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity
	Power Substation	IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking
	Railway Application	EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment
	Traffic Control System	NEMA TS 2-2016
	Protection Standard	EN 60529 IP30
Immunity	Generic	EN 55035, CISPR 35, KN35
	EN	EN 55035, CISPR 35
	ESD	EN 61000-4-2 (air - 15kV, contact - 8kV)
	Radiated	EN 61000-4-3 (10V/m UTP, 20V/m STP)
	EFT/Burst	EN 61000-4-4 4kV (1kV UTP, 4kV STP)
	Surge	EN 61000-4-5 2kV/4kV(UTP)
	Conducted	EN 61000-4-6 (3Vrms UTP, 10Vrms STP)
	Power Frequency Magnetic Field	EN 61000-4-8 (100A/m 1min,1000A/m 1sec)
	Damped Oscillatory Magnetic Field	EN 61000-4-10 (100A/m)
	Conducted CM Disturbances	EN 61000-4-16 (30V, Cont/300V, 1 sec)
	Ripple Immunity DC Power	EN 61000-4-17 (10%)
	Damped Oscillatory Wave	EN 61000-4-18 (2.5kV, 1MHz)
	Voltage Dips and interruptions	EN 61000-4-29; EN 61000-4-11 (Level 3)
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Dynamics	Vibration	IEC 60068-2-6 & 64 (operation & nonoperation)
	Shock	IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple)
	Railway Application	Compliance to EN 50155 (mounting) & IEC 61373
Mounting and Enclosure	Mounts to an EIA/TIA standard 19" telco rack. Mounting brackets included with product.
Wire	Power Input	C15 Connector
Wire	Alarm connector	AWG 18-16
PoE Budget	240W no derating.
