20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch
Kód: 1881087Ihned k odeslání
Termín a spôsob doručenia
Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty; Maximálny počet portov:48; Vlastnosti switche:Rozšíriteľnosť.prečítajte si viac
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1881087
Záruka:
99 Doživotní
Maximální počet portů:
48
Provedení:
Rack mounted 19"
Technologie:
Gigabit Ethernet + 10 GbE porty
Vlastnosti switche:
Rozšiřitelnost
PoE budget (W):
370
Přenosová rychlost LAN (Mb/s):
133
Funkce:
VLAN (virtual local area network), PoE (Power over ethernet), L2, L3, L4, QoS (Quality of service), VPN, Web management/Smart switch, DHCP snooping, Stohovatelnost
Počet SFP portů:
4
Počet PoE Out portů:
48
Počet SFP+ portů:
4
Podporované standardy PoE:
802.3at, 802.3af
Počet portů LAN:
48
Ventilátor:
Ano
Počet portů SFP28:
4
Počet portů LAN:
48
Maximální počet portů:
48
Počet PoE Out portů:
48
Počet SFP portů:
4
Počet SFP+ portů:
4
PoE budget (W):
370
Počet portů SFP28:
4
Popis 20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch
20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

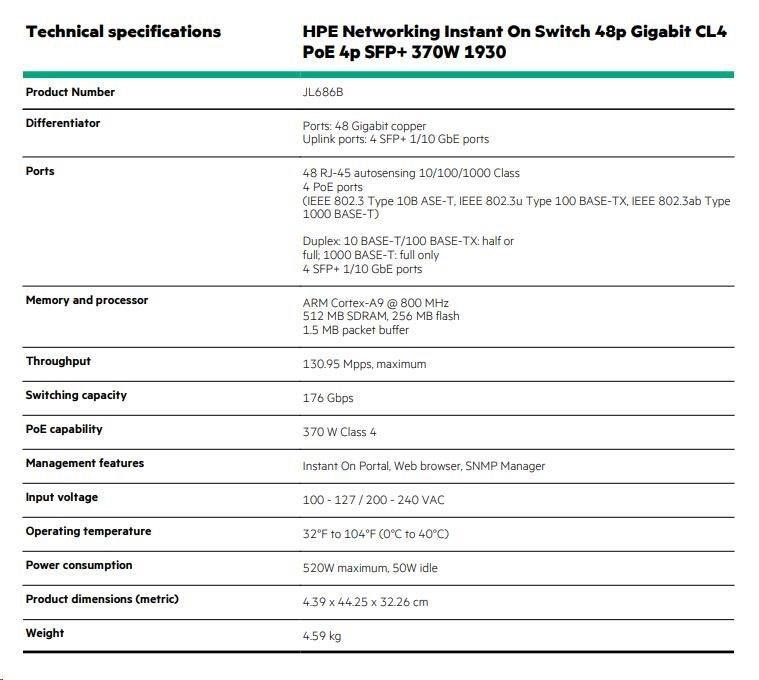

| Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B) | ||
| I/O Ports and Slots | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports | |
| Physical Characteristics | Dimensions | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height) |
| Weight | 10.12 lb (4.59 kg) | |
| CPU | ARM Cortex-A9 @ 800 MHz | |
| Memory And Flash | 512 MB SDRAM 256 MB flash | |
| Packet Buffer | 1.5 MB | |
| Performance | 100 Mb latency | < 4.5 uSec |
| 1000 Mb latency | <2.2 uSec | |
| 10000 Mb latency | <1.2 uSec | |
| Throughput (Mpps) | 130.95 Mpps | |
| Capacity | 176 Gbps | |
| Routing table size (# of static entries) | 32 | |
| MAC address table size (# of entries) | 16,000 | |
| Reliability MTBF (years) | 114 | |
| Environment | Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) | |
| Non-operating temperature | -40°F to 158°F (-40°C to 70°C) | |
| Non-operating relative humidity | 15% to 95% @ 140°F (60°C) | |
| Altitude | Up to 10,000ft (3.048 Km) | |
| Acoustic1 | LWAd = 3.7 Bel LpAm (Bystander) = 29 dB | |
| Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | ||
| Electrical Characteristics | Frequency | 50-60 Hz |
| AC voltage | 100 - 127 / 200 - 240 VAC | |
| Current | 5.2 A/2.6 A | |
| Maximum power rating | 465.6W | |
| Idle power | 38.3W | |
| PoE power | 370 W Class 4 PoE | |
| Power supply | Internal power supply | |
| Safety | UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
| Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
| Immunity | Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 | |
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | IEC 61000-4-11 | |
| Harmonics | IEC 61000-3-2, EN 61000-3-2 | |
| Flicker | IEC 61000-3-3, EN 61000-3-3 | |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager | |
| Mounting | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rackmounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided | |
| Transceivers |
| |
|
| Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) | |
.
