5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 ( JL683B )

Name: 5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 ( JL683B )
Brand: Hewlett Packard Enterprise
SKU: 1881086
Price: 2187 EUR
Availability: PreOrder

Kód: 1881086

Ihned k odeslání

Termín a spôsob doručenia

Hewlett Packard Enterprise

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty, Gigabit Ethernet 1000Mbps, 10 Gigabit optika, Gigabit optika; Maximálny počet portov:24; Vlastnosti switche:Funkcia POE na portoch.prečítajte si viac

Obľúbený

Porovnať

Vyberte si zvýhodnené balenie

Množstevné zľavy

Váš dotaz

Sledovat

Parametre

Výrobca:

Hewlett Packard Enterprise

Kód:

1881086

Záruka:

99 Doživotní

Stav:

Maximálny počet portov:

Prevedenie:

Rack mounted 19"

Technológia:

Gigabit Ethernet + 10 GbE porty, Gigabit Ethernet 1000Mbps

Vlastnosti switche:

Funkcia POE na portoch

PoE budget (W):

195

Přenosová rychlost LAN (Mb/s):

Funkce:

L2, VLAN (virtual local area network), PoE (Power over ethernet)

Počet SFP portů:

Počet PoE Out portů:

Počet SFP+ portů:

Podporované standardy PoE:

802.3at, 802.3af

Počet portů LAN:

Ventilátor:

Ano

Počet portů LAN:

Maximální počet portů:

Počet PoE Out portů:

Počet SFP portů:

Počet SFP+ portů:

PoE budget (W):

195

Popis 5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 ( JL683B )

Naposledy navštívené produkty

5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 ( JL683B )

5 x HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 ( JL683B )

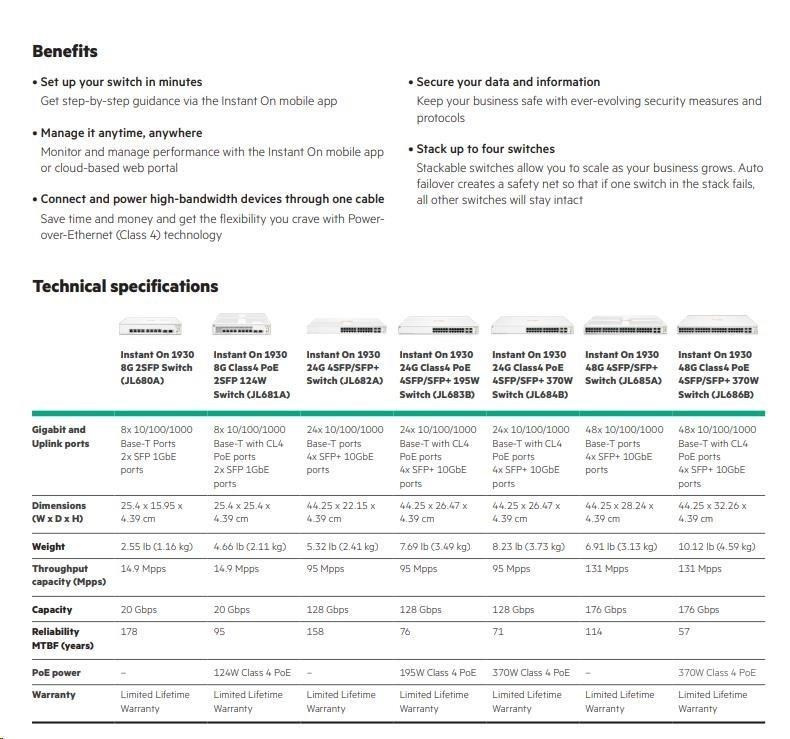

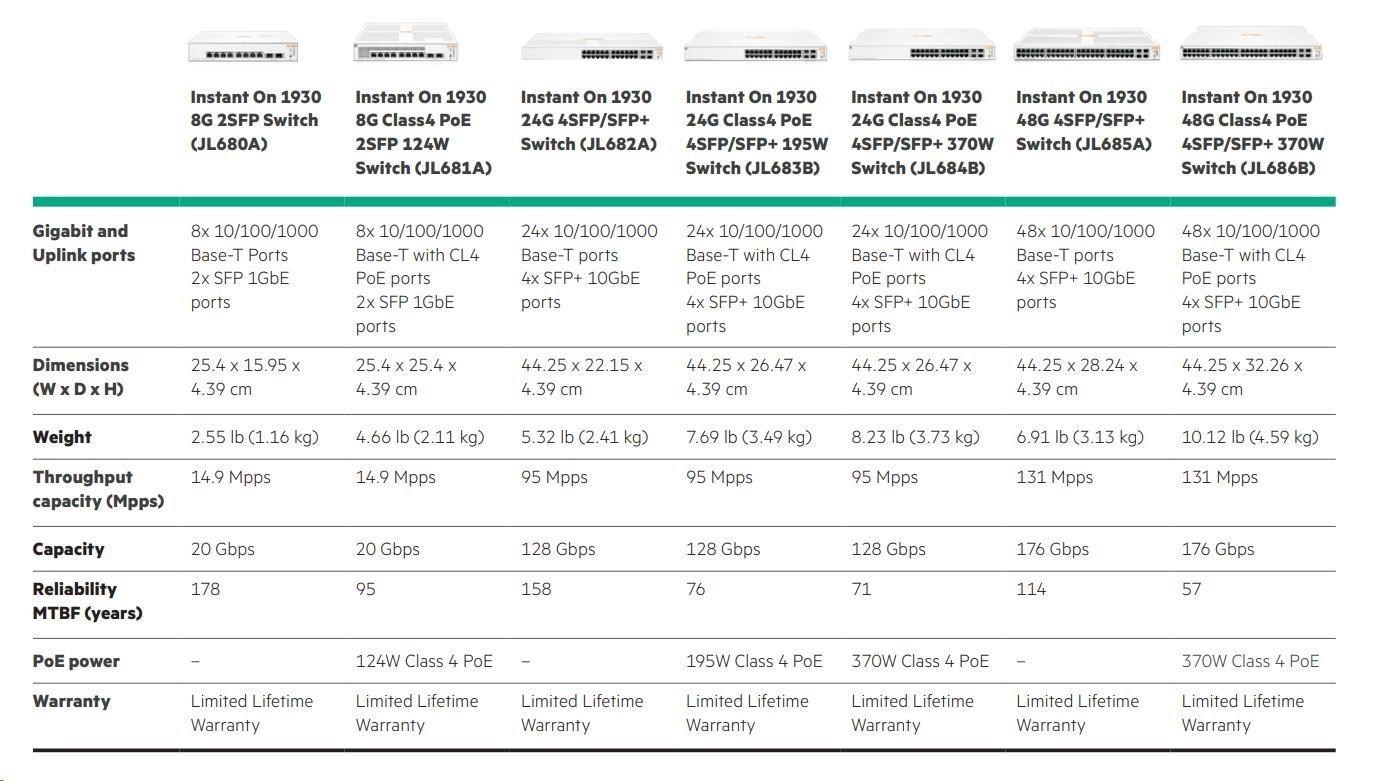

I/O Ports and Slots	24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports
Physical Characteristics	Dimensions	17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm)(1U height)
Physical Characteristics	Weight	7.69lb (3.49kg)
Processor and Memory	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Packet Buffer	1.5 MB
Performance	100 Mb latency	< 4.7 uSec
	1000 Mb latency	<2.4 uSec
	10000 Mb latency	<1.3 uSec
	Throughput (Mpps)	95.23 Mpps
	Capacity	128 Gbps
	Routing table size (# of static entries)	32
	MAC address table size (# of entries)	16,000
	Reliability MTBF (years)	76
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	15% to 95% @ 104°F (40°C)
	Non-operating temperature	-40°F to 158°F (-40°C to 70°C)
	Non-operating relative humidity	15% to 95% @ 140°F (60°C)
	Altitude	Up to 10,000ft (3.048 Km)
	Acoustic¹	LWAd = 3.9 Bel LpAm (Bystander) = 25 dB
	Notes: ¹Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics	Frequency	50-60 Hz
	AC voltage	100 - 127 / 200 - 240 VAC
	Current	2.8 A/1.4 A
	Maximum power rating	248.7W
	Idle power	19.7W
	PoE power	195 W Class 4 PoE
	Power supply	Internal power supply
Safety	UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity	Generic	CISPR 24 / CISPR 35
	EN	EN 55024:2010 / EN 55035:2017
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC 61000-3-2, EN 61000-3-2
	Flicker	IEC 61000-3-3, EN 61000-3-3
Device Management	Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting	Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rackmounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided
Transceivers
	Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) Aruba Instant On 10G SFP+ to SFP+ 1m DAC (R9D19A) Aruba Instant On 10G SFP+ to SFP+ 3m DAC (R9D20A)
